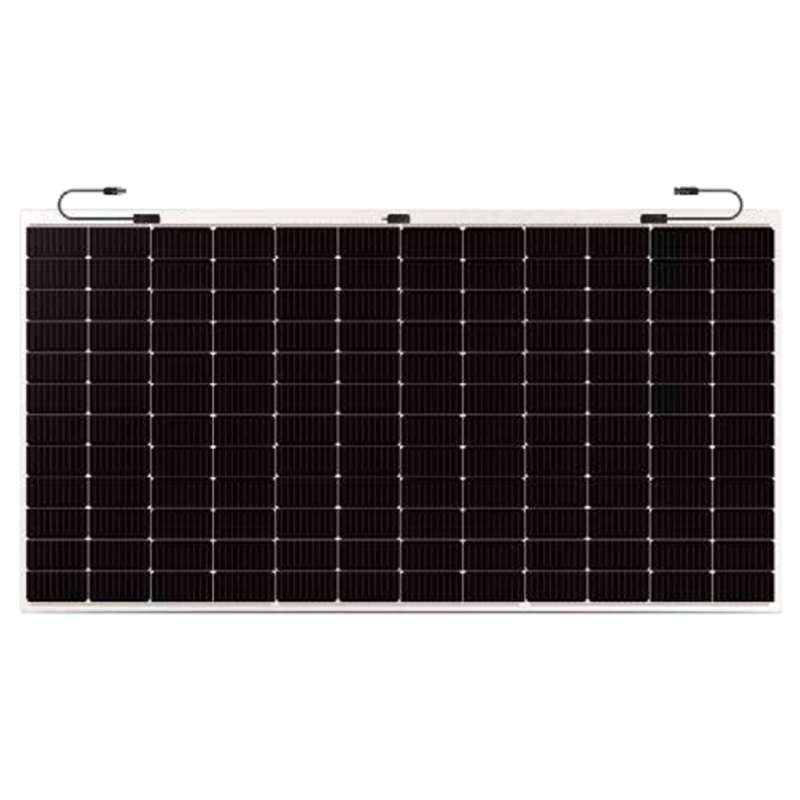

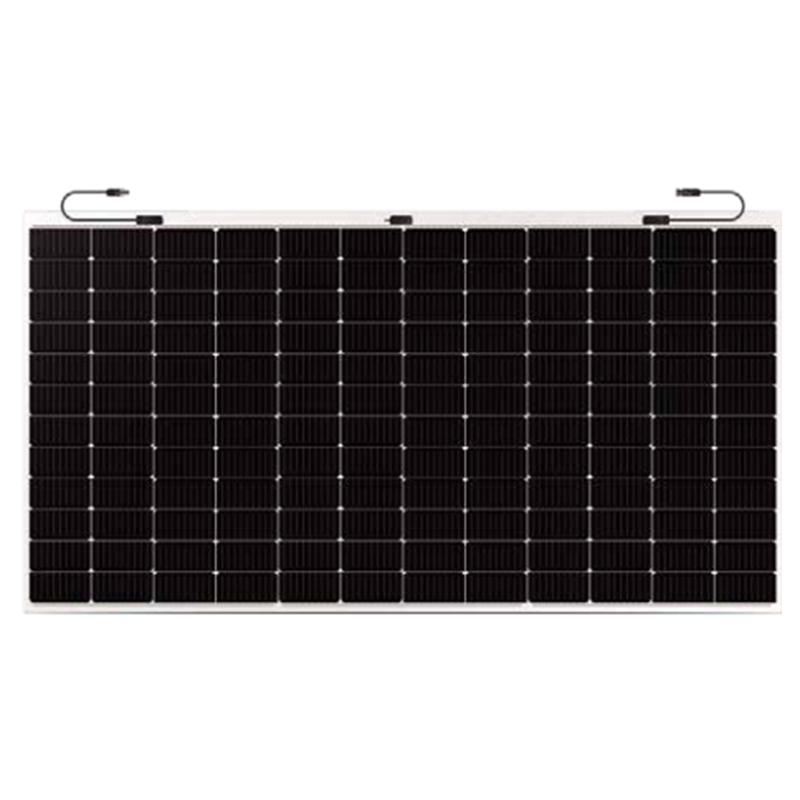

Flexible Solar Panel

Product Features

Ultra-lightweight and highly flexible, suitable for a wide range of applications

with low load-bearing requirements.

Proprietary encapsulation materials with outstanding weather resistance

Self-cleaning surface minimizes dust accumulation and ensures long-term high performance.

Product Specifications

Model: DY-430W

Peak Power: 430W

Output Port: MC4

Dimensions: 2054*1084*2.5(mm)

Net Weight: 15.9Lbs / 7.2kg

Maximum Power Voltage: 41.9V

Maximum Power Current: 10.3A

Technical Sport & Advanced Materials

Front sheet light transmittance ;;:::91%.

Water vapor transmission rate <0.89/m2 day·

25-year power warranty, ensuring long term high performance.

Static load resistance up to 5400 Pa.

IEC 61215 hail test certified.

TOV wind tunnel tested, resistant to Category 17 typhoons.

Passed flame spread and burn block tests.

Does not collapse or spread sparks in mild fire scenarios.

Inhibits static electricity and dust accumulation, reducing hot spot effects.

Quick rinse cleaning boosts power generation by 3-5%.

Application Scenarios

Designed for C&I rooftops, especially for metal roofs and curved surfaces with structural load limitations.
